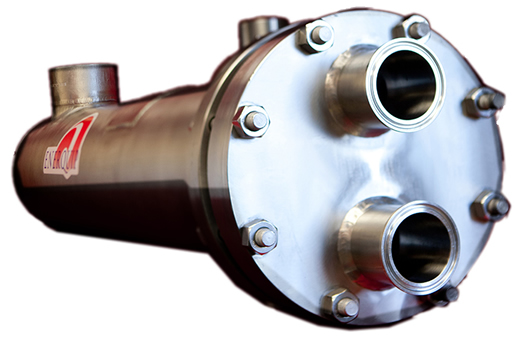

Enerquip Shell and Tube

Heat Exchangers
Sales, Service & Support



Materials of Construction:


  100% 304 S/S Construction
  Sanitary Tri-Clamp Process Connections
  Built to TEMA C Guidlines
  Removable and Replaceable Tube Bundles and O-Rings
  Options of Cupro Nickel, Stainless Steel Tubes and Shell
  3-A Standard Designs Available
  316 S/S and other Materials Available



Typical Applications:

  Wort Cooling and Heating
  Hot Water Boiler
  Deep Cooling of Beer
  Pasteurizing
  CIP Heater



In Regards to cross contamination, no Carbon Steel is used in the facility.  Because of their very large stainless buying power, a 100% stainless steel exchanger can be offered at a competitive price compared to carbon steel.  This gives you higher value and lower maintenance costs on your equipment.

While most exchanger manufacturers outsource their tubesheets, baffles and flanges to machine shops, These are produced in-house, saving valuable time and ensuring better control of quality. All Exchangers are designed and rated for 150 psig at 375 degrees F. Optional insulation and cladding with stainless steel jacket.

If you have questions about how an Enerquip Shell & Tube Coolers will benefit your application,
or would like a quote please contact us: 1-888-226-8522




Dimensions in Inches:


  Model A B C D E F G H J K L M N O P Q R SQ FT AREA
  STA03014 17.187 3.25 1.0 1.0 3.567 10.0 3/4 3/4 1 1 2.312 2.75 1.625 4.5 7/16x3/4 .375 16.375
  STA03024 27.187 3.25 1.0 1.0 3.562 20.0 26.375
  STA04014 17.567 4.250 1.25 1.25 4.437 9.0 3/4 3/4 1.5 1.5 3.125 3.5 1.750 4.25 7/16x3/4 .625 16.625 1/41/4
  STA04024 27.562 19.0 26.625
  STA04036 39.562 31.0 38.625
  STA05014 18.437 5.250 1.688 1.688 4.812 9.0 1 1 1.5 1.5 3.437 4.0 2.0 5.25 1/2x3/4 .750 17.125 1/41/4
  STA05024 28.437 19.0 27.125
  STA05036 40.437 31.0 39.125
  STA06024 28.567 6.25 2.0 2.0 5.437 18.25 1.5 1.5 2 2 4.062 4.5 2.5 6.250 1/2x3/4 1.0 27.125 3/83/8
  STA06036 40.567 30.25 39.125
  STA06048 52.567 42.25 51.125
  STA06060 64.562 54.25 63.125
  STA08024 30.437 8.625 2.5 2.5 7.062 17.0 2 2 3 3 5.437 5.750 3.5 8.250 5/8x7/8 1.812 27.5 3/83/8
  STA08036 42.437 29.0 39.5
  STA08048 54.437 41.0 51.5
  STA08060 66.437 53.0 63.5
  STA08072 78.437 65.0 75.5


Phone:

Call for a quote or to place an order.
Were open M-F 8am-5pm (Pacific Time)

Phone: 1-805-484-2992

Email:

Email us with questions and/or with details
regarding your specific application.

E-mail: sales@southwestthermal.com




Quotes, Engineering & Ordering Information: Wort Coolers, please contact us: 1-888-226-8522
