Glycol Chilling

Chillers
Sales, Service & Support

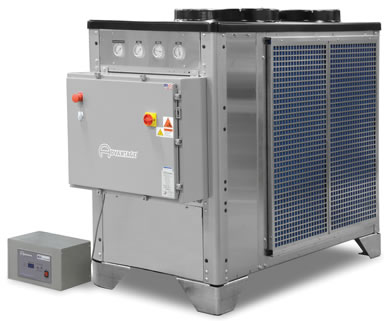

Glycol Chilling


Materials of Construction:


  Nema 1 Electrical Construction
  Scroll Compressor
  Air Cooled Condenser
  Brazed Plate Evaporator
  Filter-Dryer
  Automatic Make-Up Water
  Castors for Portability
  Powder Coated Steel Frame
  Thermostatic Expansion Valve


Chiller Applications:


  Glycol Chillers for Cooling Fermentation Tanks, Brite Tanks, and Wort Coolers
  Brite Tank Temperature Maintenance
  Fermentation Tank Crash Cooling
  Cold Liquor Tank Cooling
  Storage Room Cooling
  Indoor and Outdoor Applications

Reasons for Rapid Wort Cooling:

Dimethyl Sulfide Reduction
Clearer Finished Beer
Preserves Delicate Hop Aroma
Prohibit Bacteria Growth

Glycol Chillers use Mechanical Refrigeration to Cool Recirculated Fluids to Cool Wort Quickly.

If you have questions about how a our Glycol Chillers will benefit your application, or would like a quote please contact us: 1-888-226-8522




Glycol Chillers:


  Model Capacity BTU/HR Compressor HP Pump HP Flow GPM

  BC-1A 5606 1 1/2 2.4
  BC-1.5A 9346 1.5 1/2 3.6
  BC-2A 13868 2 3/4 4.8
  BC-3A 17568 3 3/4 7.2
  BCD-5A 30283 5 2 12
  BC-7.5A 45083 7.5 2 18
  BCD-10A 59683 10 2 24
  BCD-15AF 92774 15 3 36
  BCD-20AF 117274 20 3 48



Wort Cooling: Wort Flow in BBL per Hour x 5150 = BTU/HR

Quotes, Engineering & Ordering Information: Wort Coolers, please contact us: 1-888-226-8522
Wort Cooling
